Manufacturer of Copper Wire Stranded Rope Connector, Copper Braided Strip Conductors, Copper Braided Rope Connectors, Copper Flange Connector, Flange Connector, Copper Flexible Shunt, Copper Flexible Jumper, Earthing Material In Mumbai, India

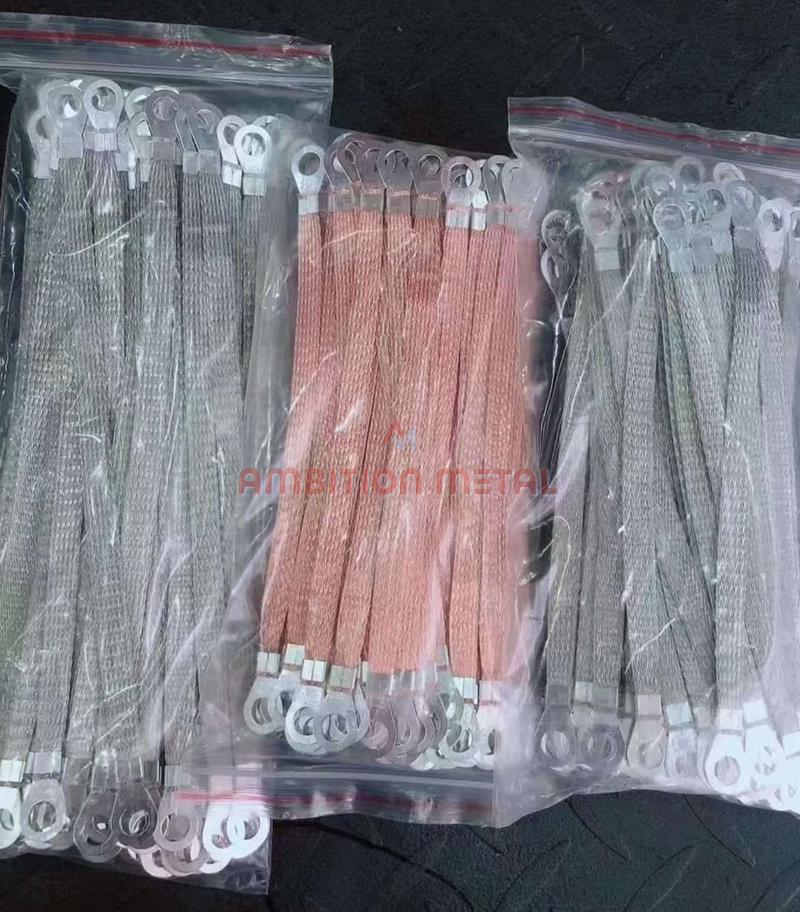

Apart from customized braided copper wire strip and braided copper wire rope we also manufacture ready to fit easy to install fittings. These copper flexible bonding jumper or grounding braids are available with different types of copper lug fittings like copper tubular lug , copper ring tongue lug , copper fork type lug etc. A proper copper lug is selected depending upon user requirement.
These copper lugs are usually tin plated. The copper braids are available in bare , tin and silver finish. Apart from regular copper lugs and copper braids these bonding jumper or grounding braids are available in Aluminium wire also.
| Diameter MM | Length Sq. MM | Stud Hole MM | Item Code Sr. No. |
|---|---|---|---|
| 2.5 | 100 | 4 , 6 | OLF-2501 |
| 2.5 | 150 | 4 , 6 | OLF-2502 |
| 2.5 | 200 | 4 , 6 | OLF-2503 |
| 4 | 100 | 6 , 8 | OLF-4100 |
| 4 | 150 | 6 , 8 | OLF-4150 |
| 4 | 200 | 6 , 8 | OLF-4200 |
| 6 | 100 | 6 , 8 | OLF-6100 |
| 6 | 150 | 6 , 8 | OLF-6150 |
| 10 | 150 | 8 , 10 | OLF-1015 |
| 10 | 200 | 8 , 10 | OLF-1020 |
| 10 | 300 | 8 , 10 | OLF-1030 |
| 16 | 150 | 8 , 10 | OLF-1615 |
| 16 | 200 | 8 , 10 | OLF-1620 |
| 16 | 300 | 8 , 10 | OLF-1630 |
| 25 | 150 | 10 , 12 | OLF-2515 |
| 25 | 200 | 10 , 12 | OLF-2520 |
| 25 | 300 | 10 , 12 | OLF-2530 |
| 35 | 300 | 12 , 16 | OLF-3530 |
| 35 | 500 | 12 , 16 | OLF-3550 |
| 50 | 300 | 12 , 16 | OLF-5030 |
| 50 | 500 | 12 , 16 | OLF-5050 |
